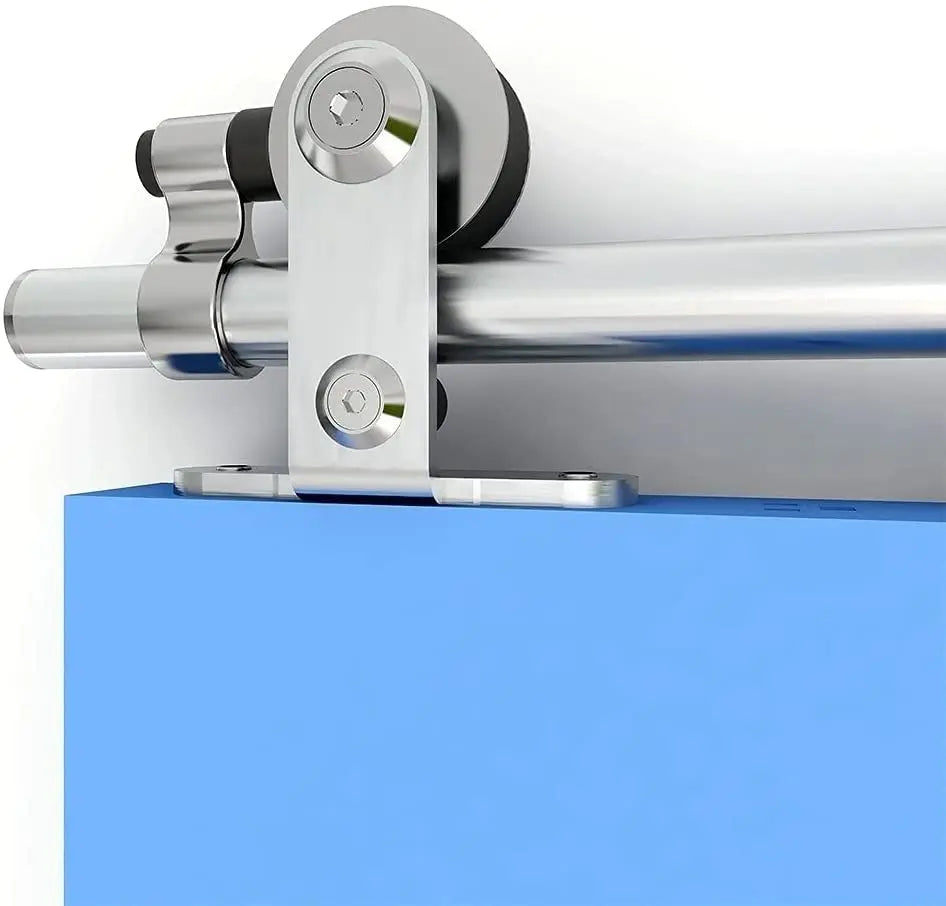

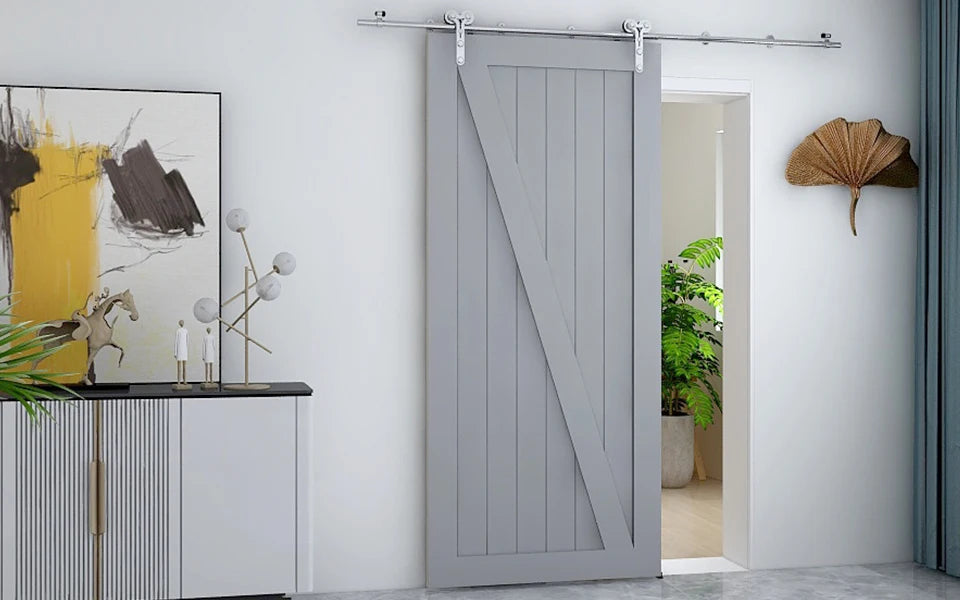

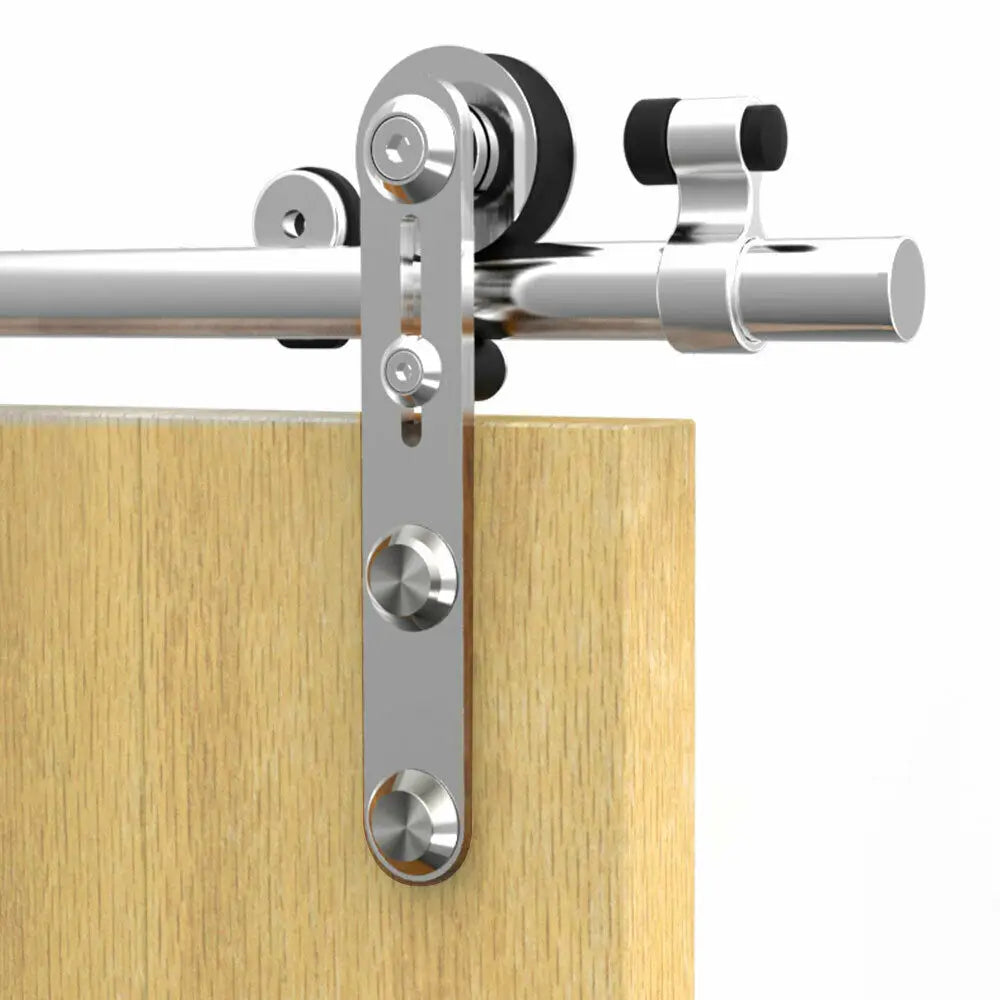

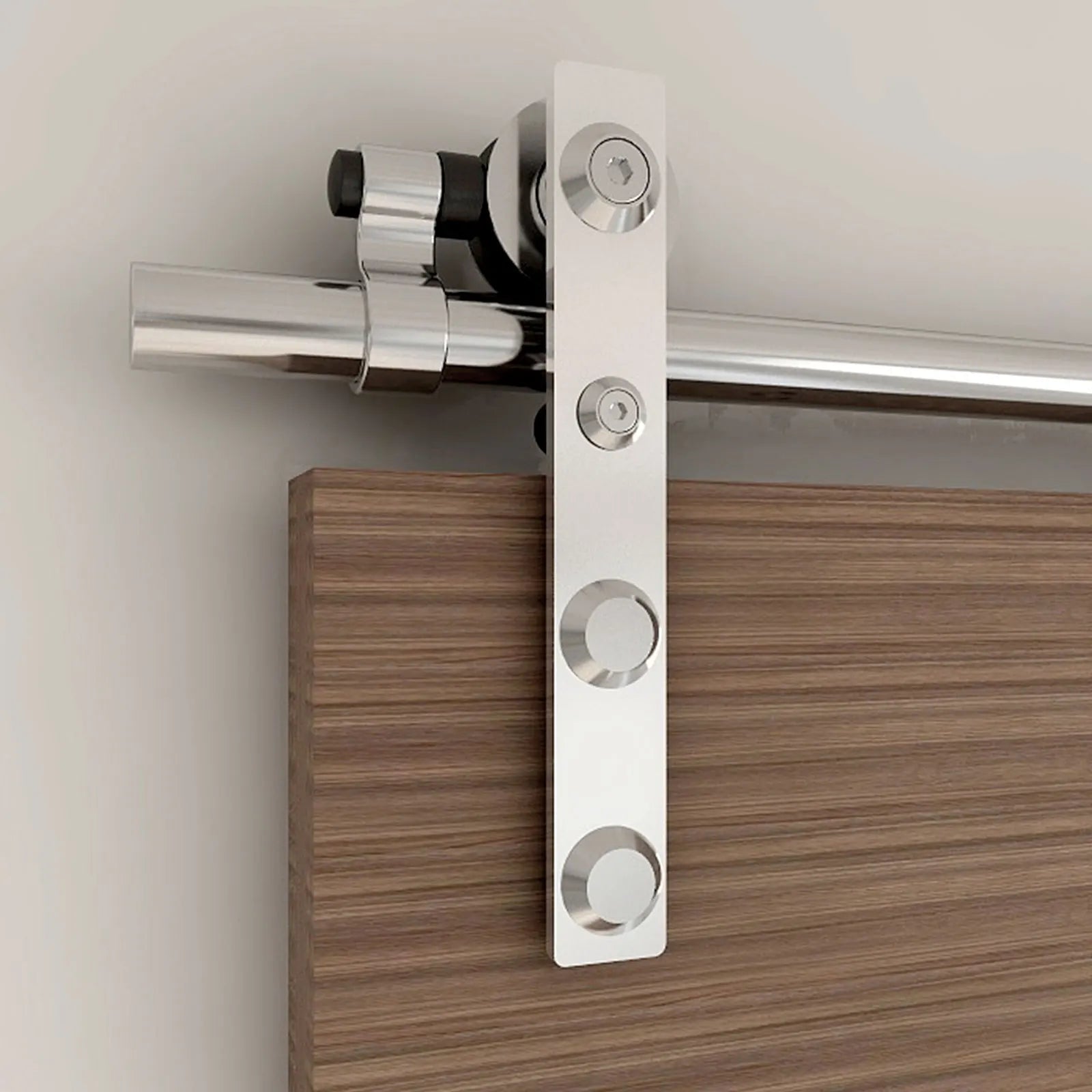

LWZH 10-16FT Round -Shaped Silver Stainless SteelWooden Sliding Door Hardware Kit for Single Door

In stock
50707353-13-6ft-413cm
$1,278.99 $682.96

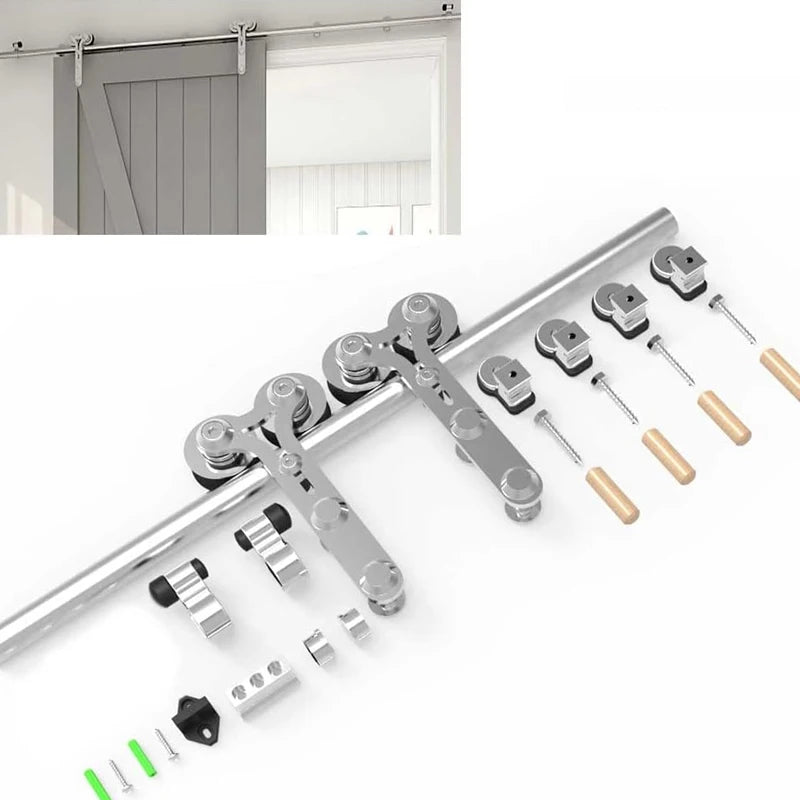

PLS NOTE:  ONLY the hardware kit is for sale, door panel is not included. This hardware kit is for single door.



Product parameters:

Product name: Horizontal bar door hardware

Material: aluminum alloy

Shape: round

Color: silver

Surface treatment: spray paint

Use scene: indoor

Weight: 4.5-6kg

Due to the simple design of the slide, no installation experience is needed, just follow the simple installation instructions.
Choose Door Width and Sliding Roller
1) Confirm Door Width
Single Door: Door Width=Door Opening Width+100mm
Double Door: Door Width=(Door Opening Width+100mm)/2
Example:
Single door opening width 800mm, door width at least needs to be 900mm
Double door opening width 1500mm, door width at least needs to be 800mm
Notice: Please note 100mm is the least to add.
2) Confirm Length of Sliding Rail

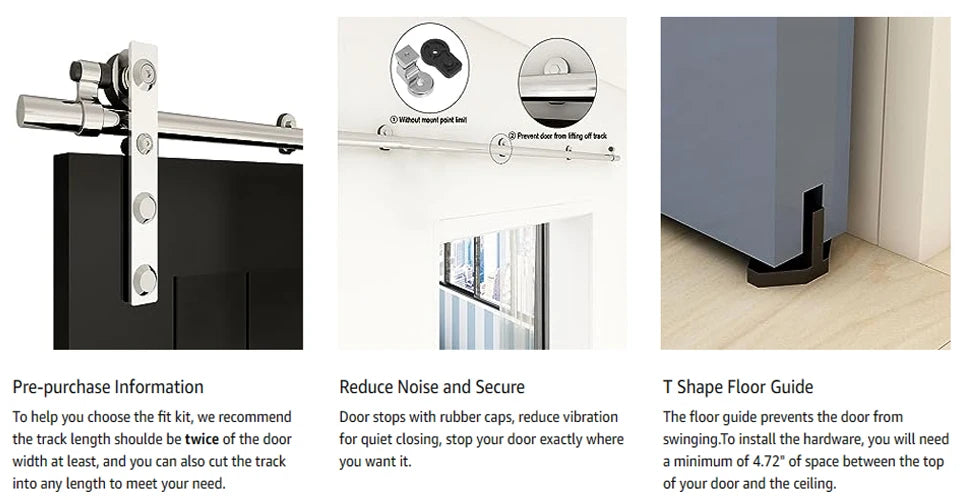

Single Door:Sliding Rail Length > Door Width*2
Double Door:Sliding Rail Length > Door Width*4
Installation Instructions:

1.Track Splicing
Please be careful of the consequence of wall hanger and connect part when installing .Make wall hangers be distributed average .
2.Measure  The Mounting Holes
  • (1)Determine the height of the horizontal line .

  • (2)Use level ruler to draw the horizontal line on the wall .

  • (3)Find  the center point on the track, put the track cover the horizontal line, align the center point with the door edge (single door )/middle of the door opening (double door ).

  • (4)Through the track holes, use a pencil to draw dots standing for holes position on the wall

3.Drill Holes
Drill holes on these dots by using a   Ø15mm   electric drill.
4.Install Track
Put the wood plug into the holes ,then drill a hole by using a Ø4mm bit on the center of the plug.
(as figure show )

Certification: NONE Origin: CN(Origin)
Surface Finishing: Painted
Main Material: Steel
Frame Material: Aluminum Alloy
Model Number: YTGBDM 10-16
Charge Unit: Set
Open Style: Sliding
Opening Method: Push and Pull
Position: Interior
Type: Sliding Doors
Sliding Door Type: Partition Doors
Door Material: Solid Wood
Door Type: Glass
Model number: YTGBDM 10-16
Color: Silver
Main Material: Steel & roller wheel bearing-Gcr15

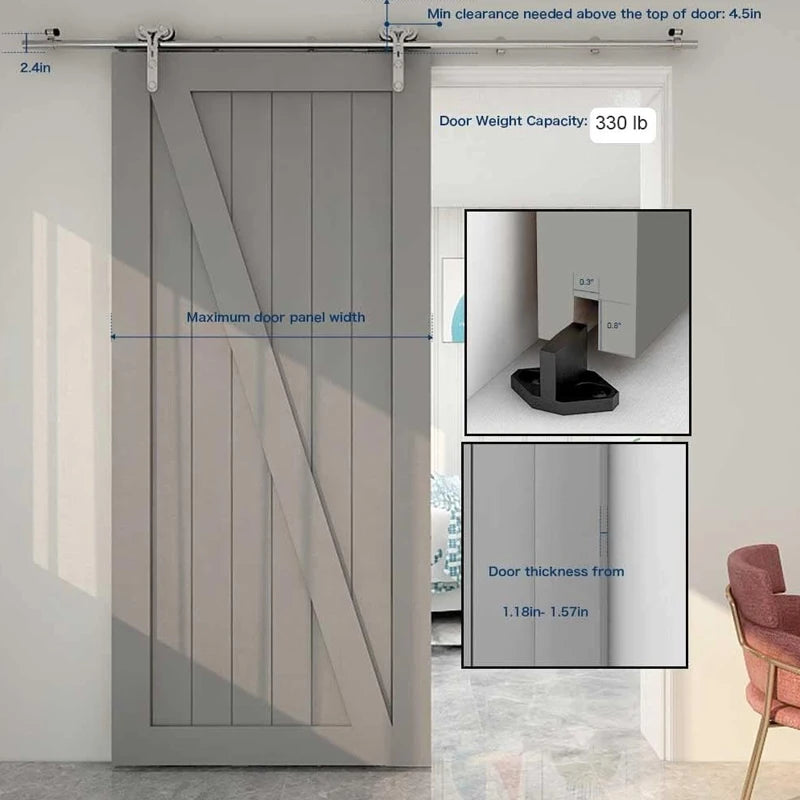

Load Bearing: Max. 220lbs per door

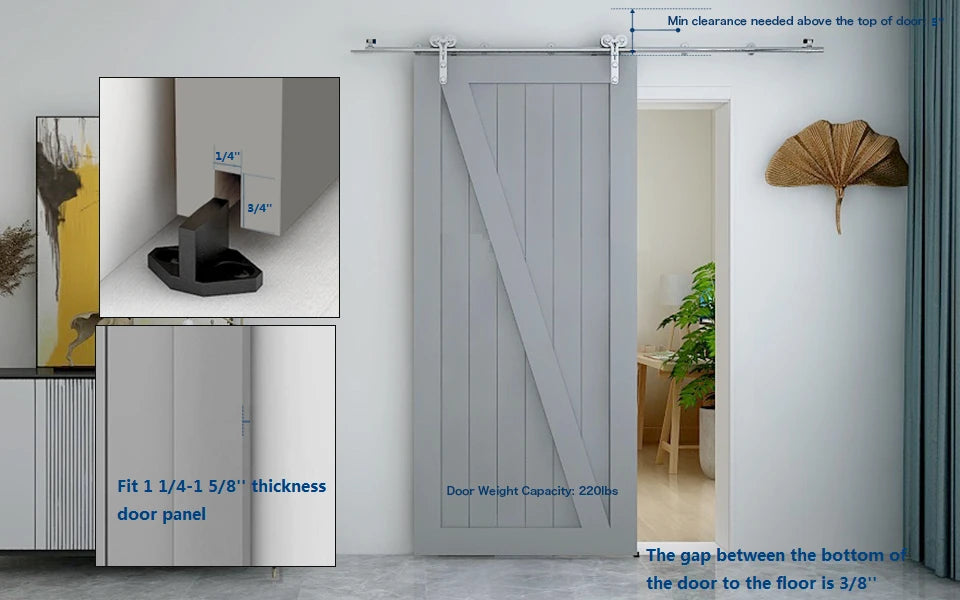

Fit WOODEN DOOR panel thickness: 1 2/5"(3.56CM) - 1 3/5(4.06CM)
Fit GLASS DOOR panel thickness: 2/5"(1.015CM) and 1/2" (1.269CM)
Fit door panel width: 60-96''(152-243cm)
Weight: 4.5-6kg
Origin: China
Door panel: Not included

Please allow up to 3-8 weeks to have this global sourced item sent direct to your address, as there is some disruption to the overall freight company's involved, so please allow plenty of time when ordering this product.. Good things are worth waiting for. Please contact shop@rummages.co.nz if you have any questions
