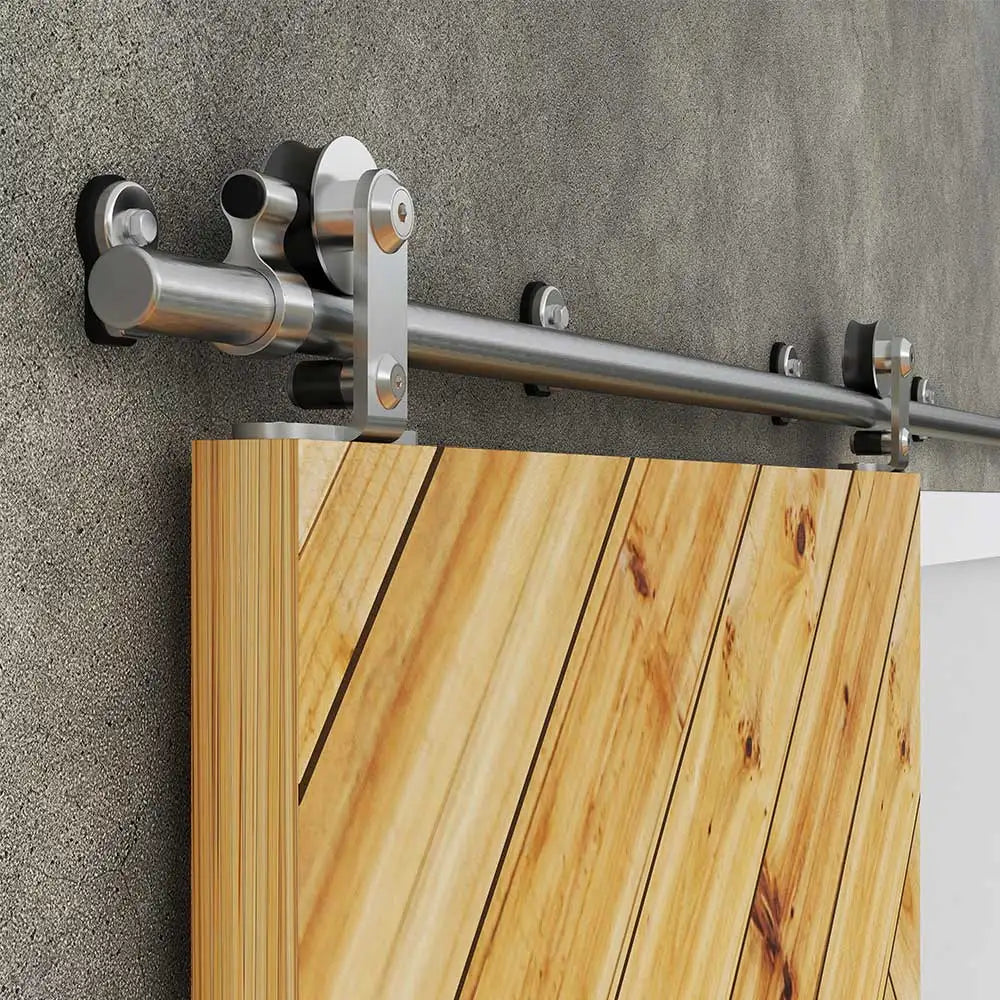

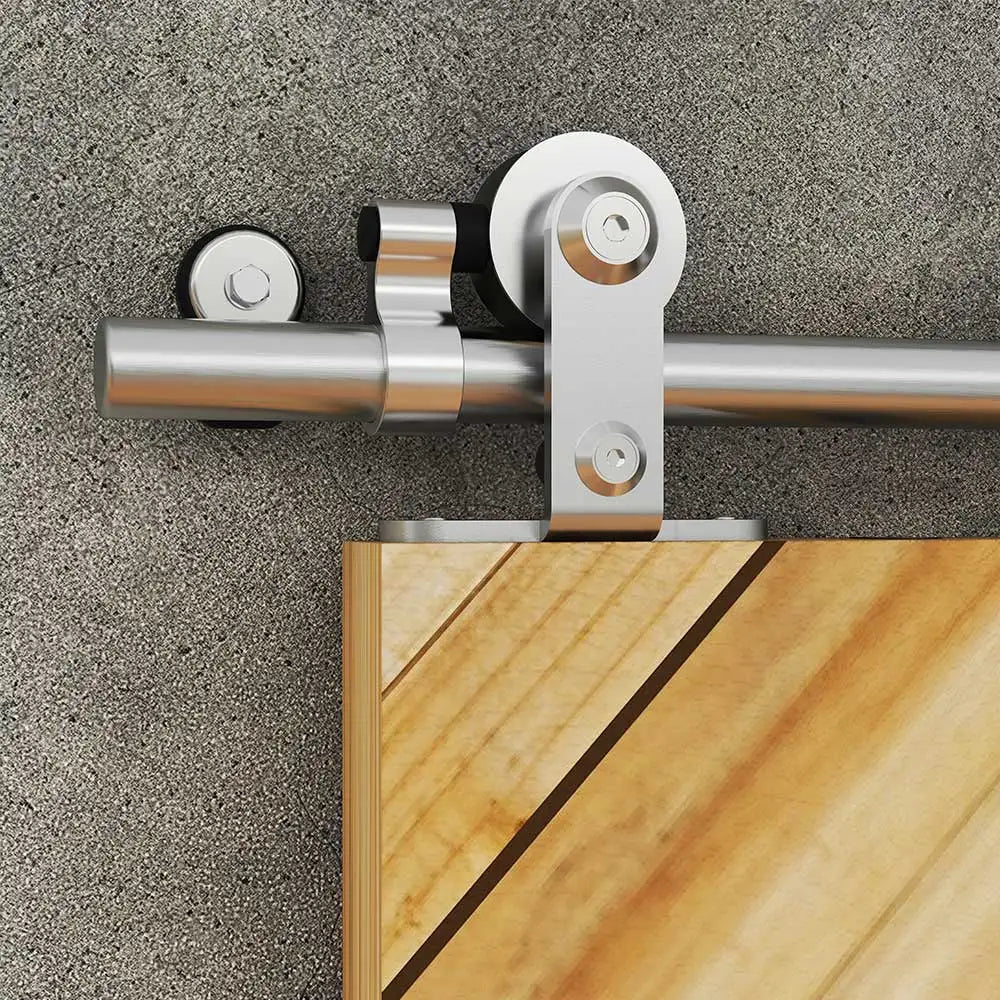

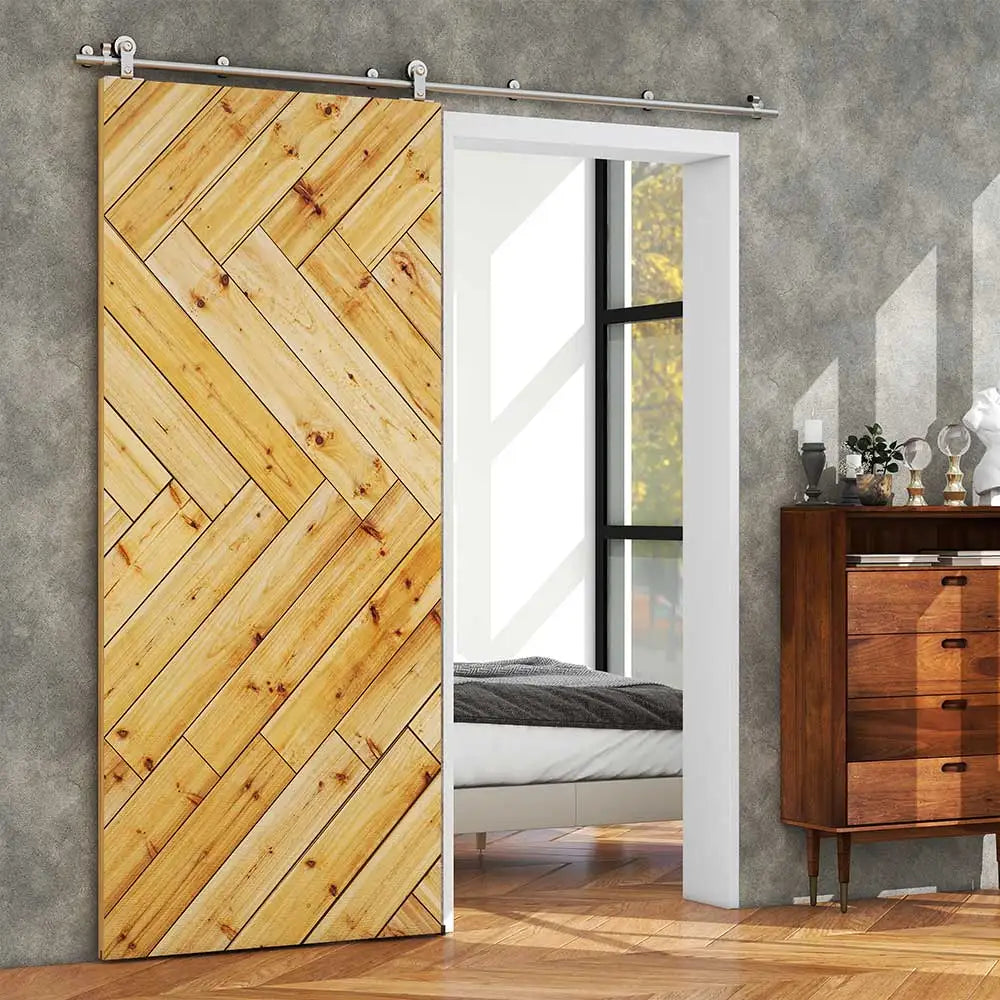

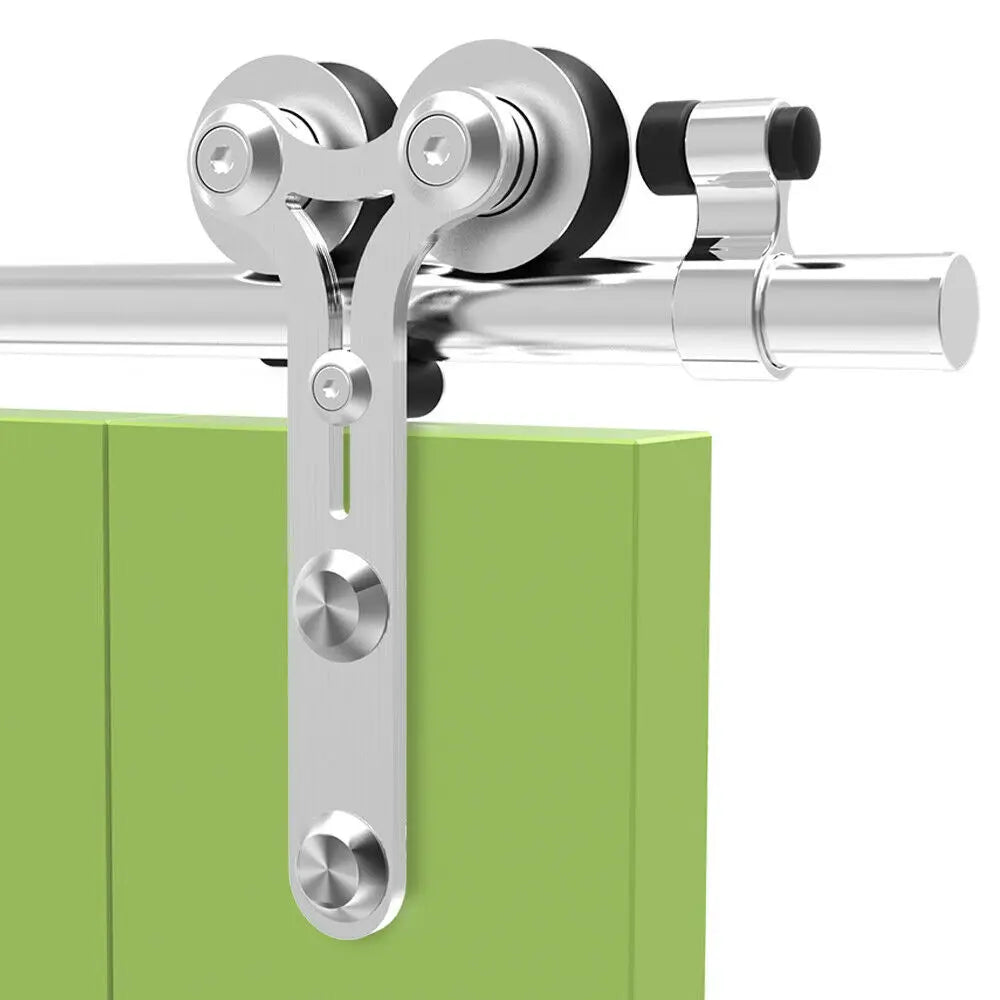

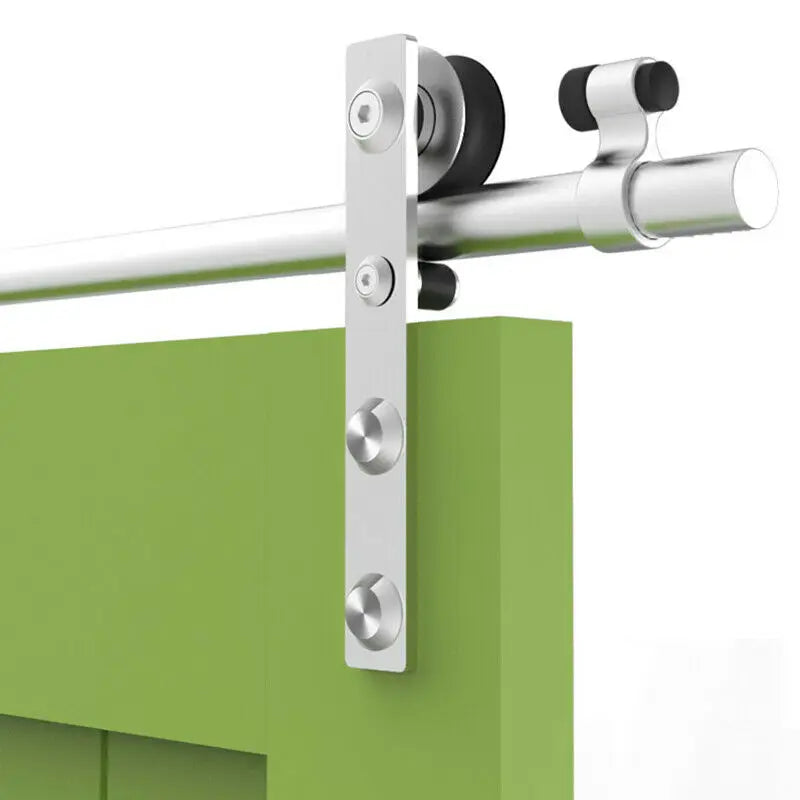

LWZH 4-9.6FT Round -Shaped Silver Stainless Steel Puerta Corredera Wooden and Glass Sliding Door Hardware

In stock
33161293-4ft-121cm
$868.99 $467.99

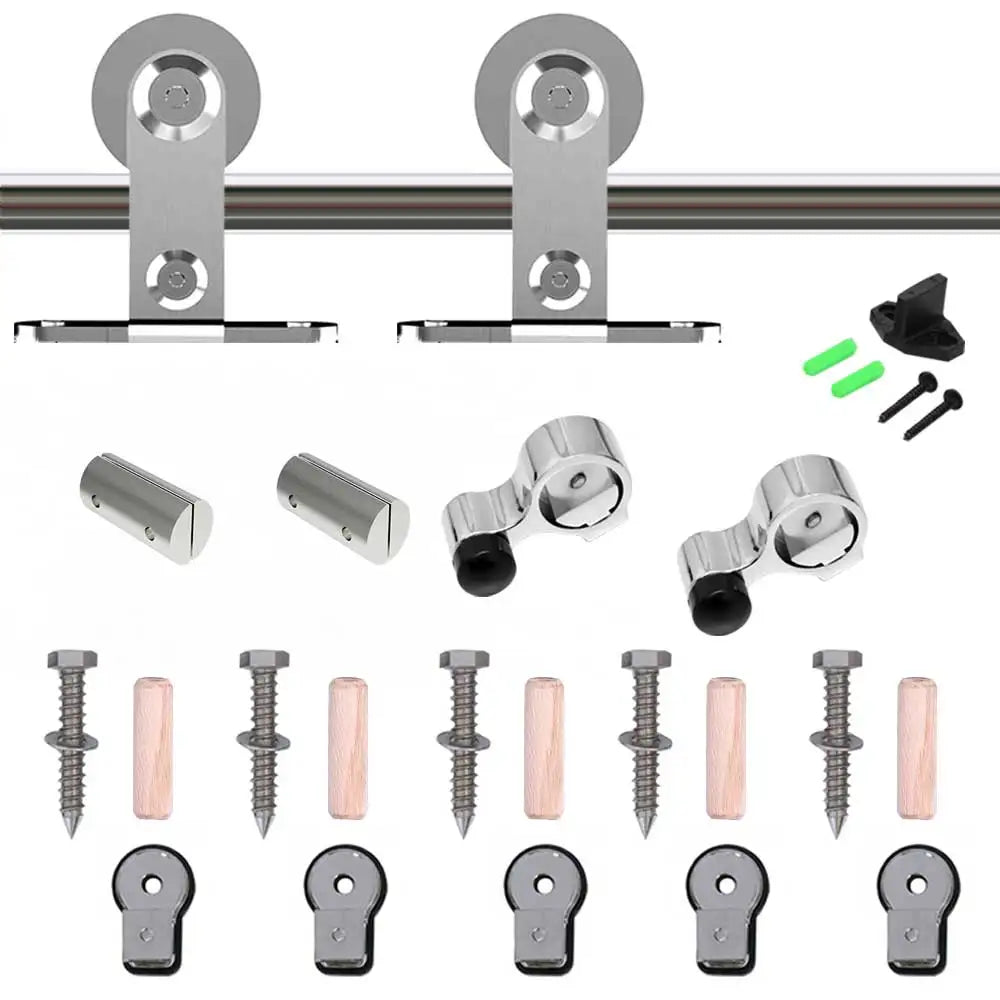

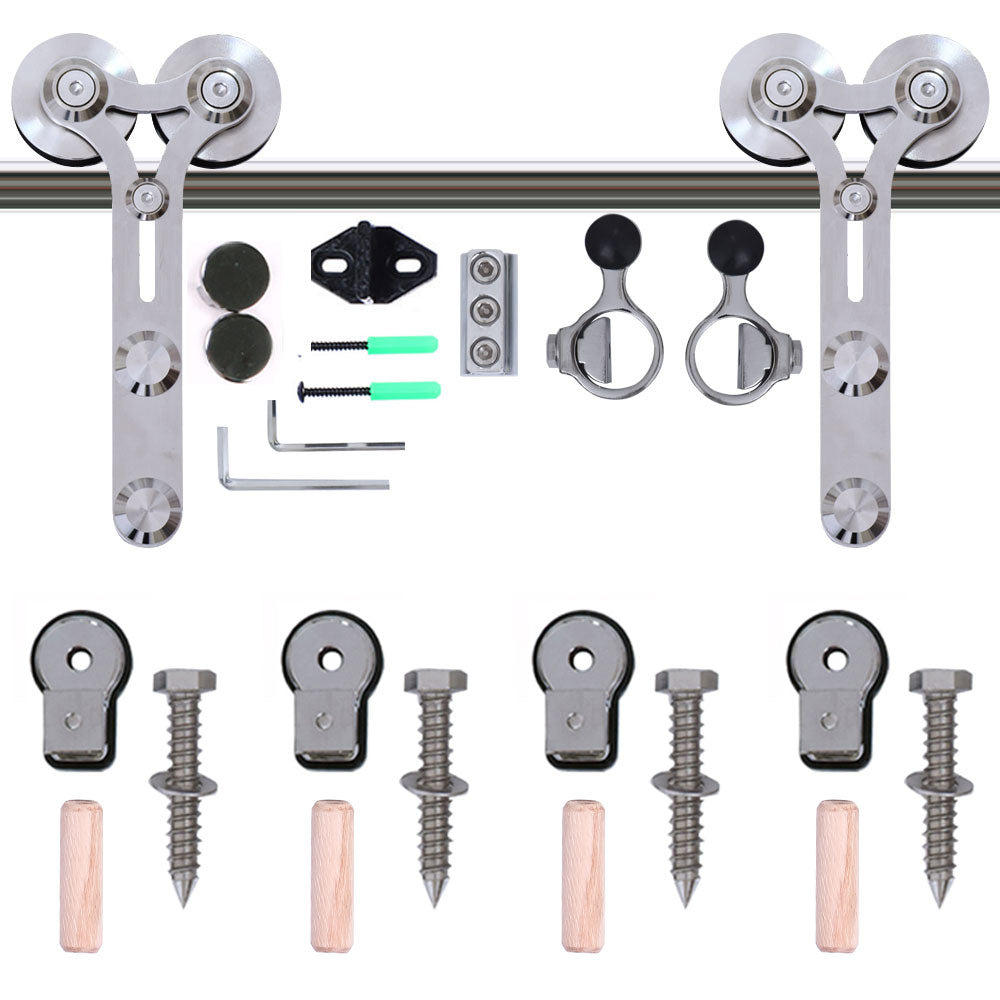

PLS NOTE:  ONLY the hardware kit is for sale, door panel is not included. This hardware kit is for single door.
Due to the simple design of the slide, no installation experience is needed, just follow the simple installation instructions.

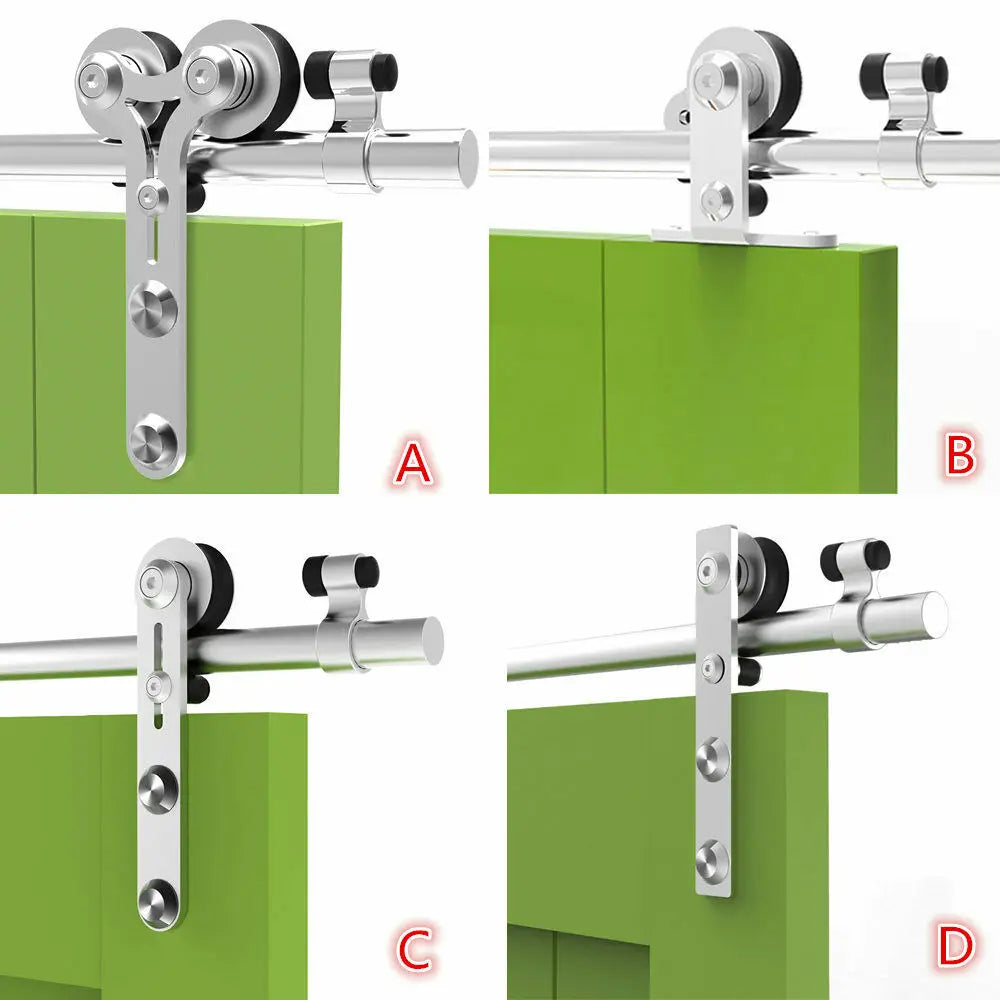

Choose Door Width and Sliding Roller
1) Confirm Door Width
Single Door: Door Width=Door Opening Width+100mm
Double Door: Door Width=(Door Opening Width+100mm)/2
Example:
Single door opening width 800mm, door width at least needs to be 900mm
Double door opening width 1500mm, door width at least needs to be 800mm
Notice: Please note 100mm is the least to add.
2) Confirm Length of Sliding Rail
Single Door:Sliding Rail Length > Door Width*2
Double Door:Sliding Rail Length > Door Width*4
IF double door ,please install the two door stops in the middle firstly,then install according to the above steps.
2.Measure  The Mounting Holes
  • (1)Determine the height of the horizontal line .

  • (2)Use level ruler to draw the horizontal line on the wall .

  • (3)Find  the center poiint on the track,put the track cover the horizontal line,align the center point with the door edge (single door )/middle of the door opening (double door ).

  • (4)Through the track holes,use a pencil to draw dots standing for holes position on the wall

3.Drill Holes
Drill holes on these dots by using a   Ø15mm   electric drill.
4.Install Track
Put the wood plug into the holes ,then drill a hole by using a Ø4mm bit on the center of the plug.
(as figure show )
6.Hang the Door on the Track
7.Adjust the Angle of the Anti-jump Disk
8.Adjust the position of Door Stop

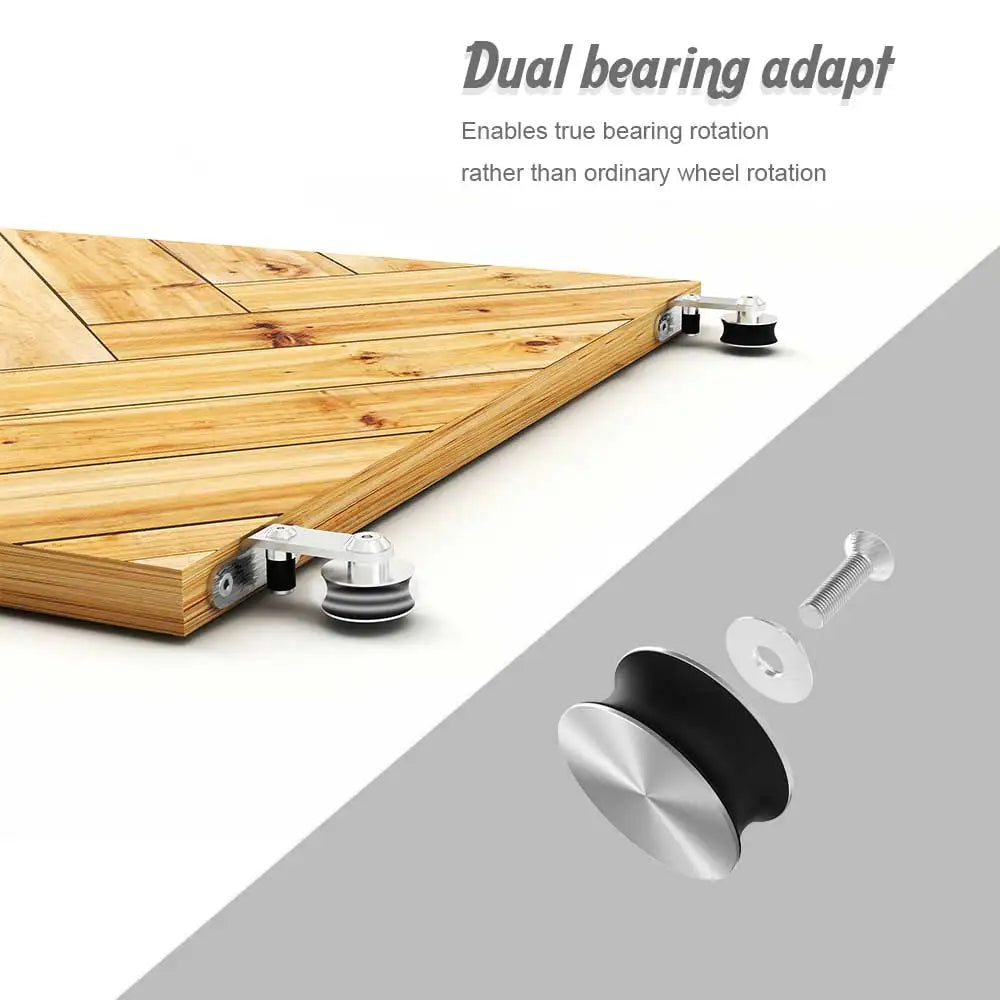

9.Install wood door Floor Guide
Certification: NONE
Origin: CN(Origin)
Surface Finishing: Painted
Main Material: Steel
Frame Material: Aluminum Alloy
Model Number: YTGBDM 4-9.6
Charge Unit: Set
Open Style: Sliding
Opening Method: Push and Pull
Position: Interior
Type: Sliding Doors
Sliding Door Type: Partition Doors
Door Material: Solid Wood
Door Type: Glass
Model number: YTGBDM 4-9.6
Color: Silver
Main Material: Steel & roller wheel bearing-Gcr15
Load Bearing: Max. 220lbs per door

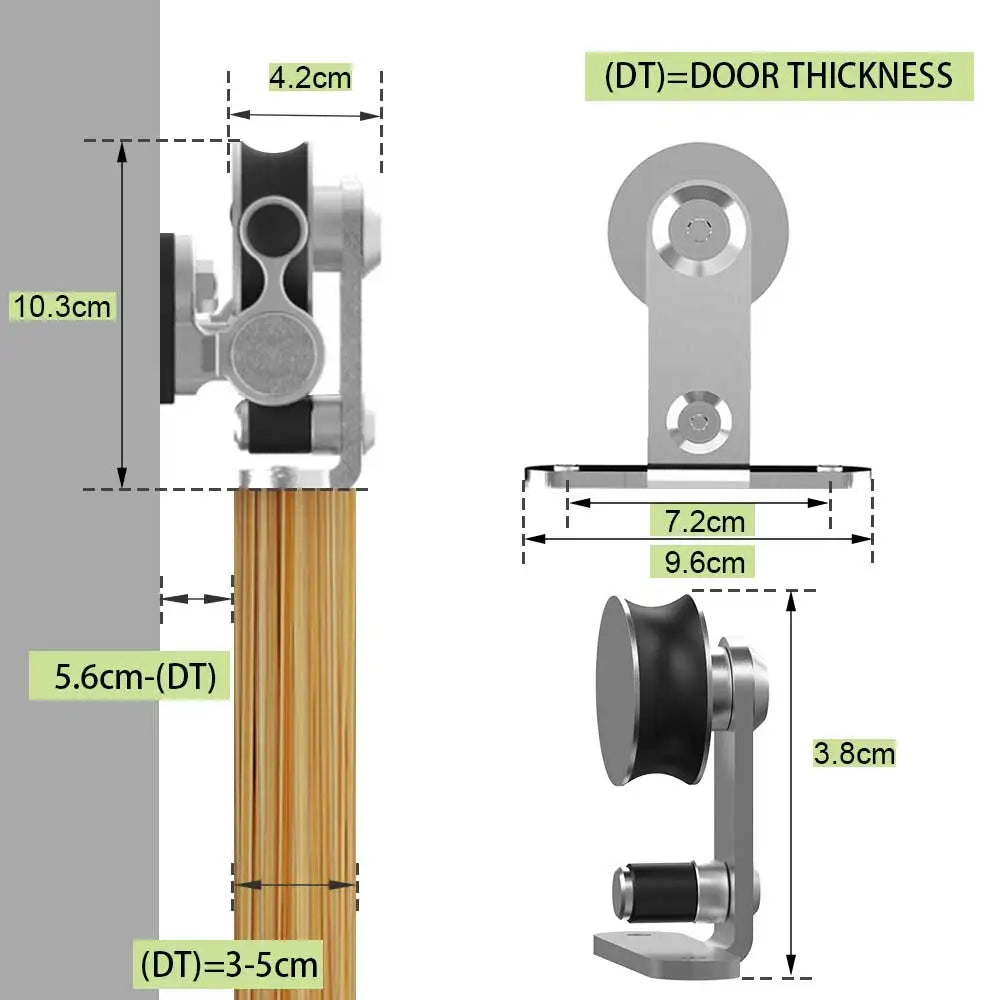

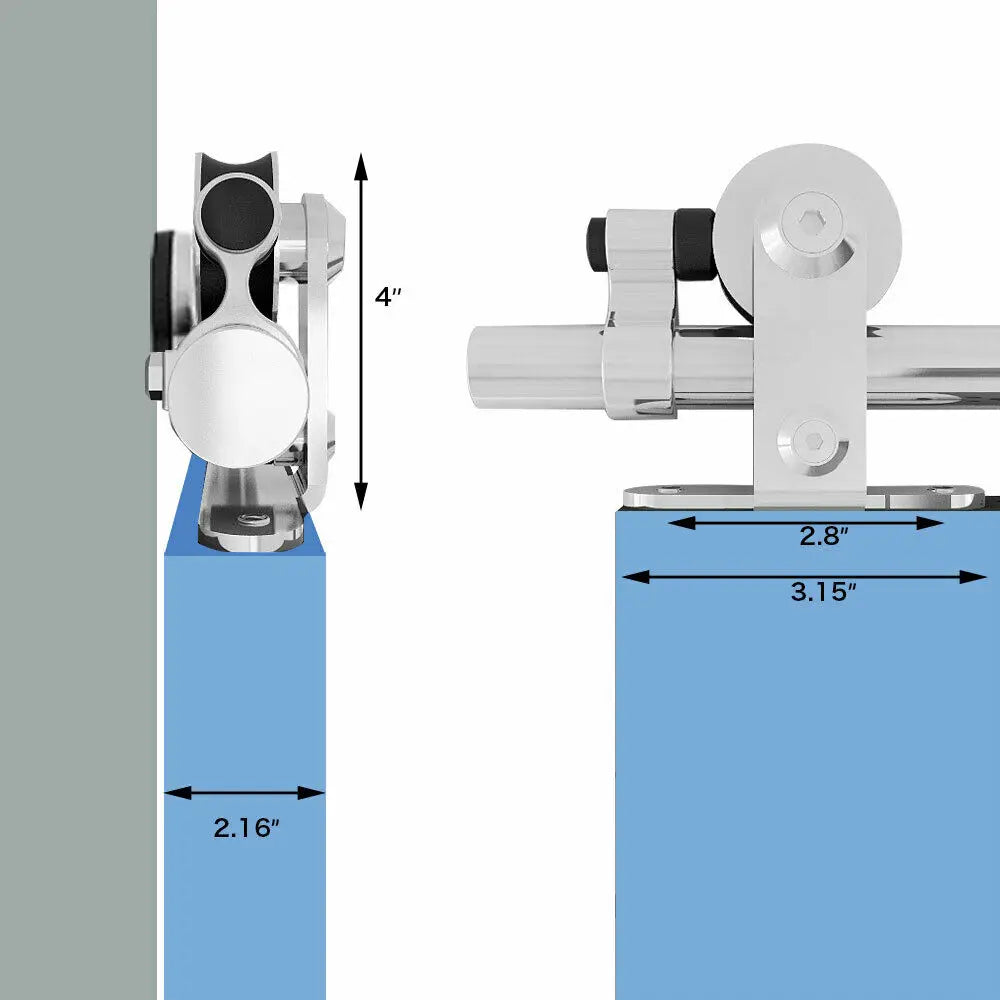

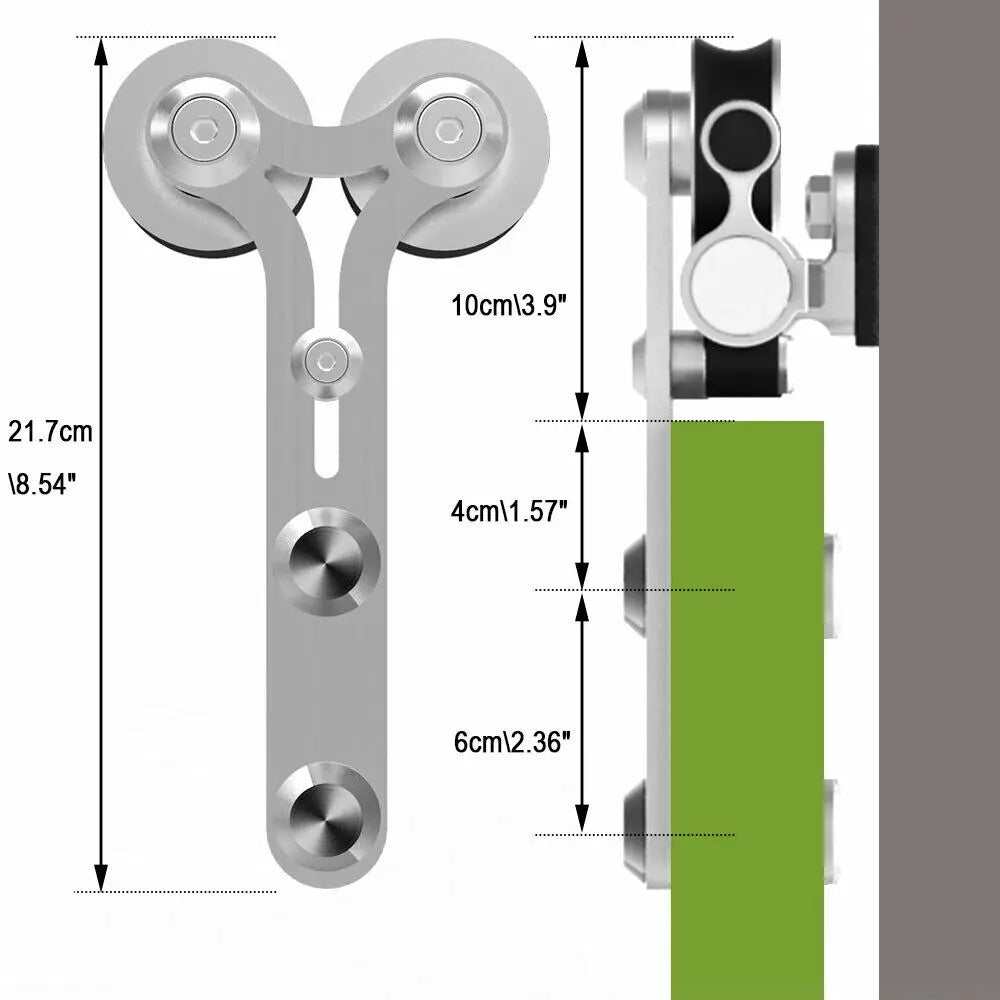

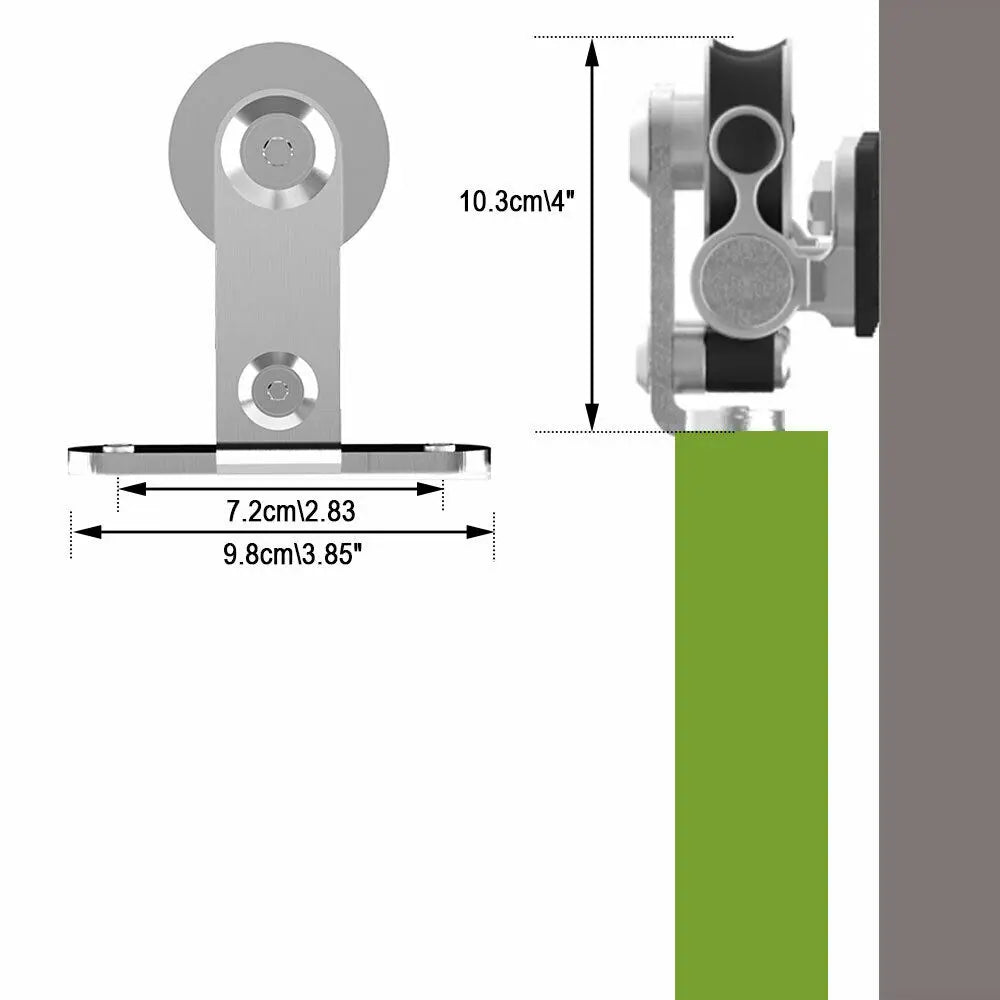

Fit WOODEN DOOR panel thickness: 1 2/5"(3.56CM) - 1 3/5(4.06CM)
Fit GLASS DOOR panel thickness: 2/5"(1.015CM) and 1/2" (1.269CM)
Fit door panel width: 24-57.6''(60-146cm)
Weight: 3-4.5kg
Origin: China
Door panel: Not included
Color *
4FT 121cm
5FT 152cm
6FT 183cm
6.6FT 200cm
7FT 213cm
8FT 242cm
9FT 274cm
9.6FT 291cm
